Tag: authentik

Posted on

Browser VSCode docker image used to manage docker host with addon

This is a docker-compose.yaml for VS Code Server that allows host docker control in your browser window.

This is done by sharing the docker sock volume, docker-compose host folder and docker folder if you have it (for quick edits of config files) and using an environment variable to install the docker extension.

The docker-compose.yaml is from LinuxServer.io

---
services:
  code-server:
    image: lscr.io/linuxserver/code-server:latest
    container_name: code-server
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Etc/UTC
      - PASSWORD=password #optional
      - HASHED_PASSWORD= #optional
      - SUDO_PASSWORD=password #optional
      - SUDO_PASSWORD_HASH= #optional
      - PROXY_DOMAIN=code-server.my.domain #optional
      - DEFAULT_WORKSPACE=/config/workspace #optional
      - PWA_APPNAME=code-server #optional
    volumes:
      - /path/to/code-server/config:/config
    ports:
      - 8443:8443
    restart: unless-stopped


Create passwords for security, if you use your own auth and reverse proxy you can add Traefik and Authentik labels.

Note: If you use your own auth, just remove the password options.

My host docker-compose folder is found at – /home/richay/docker-compose
My host docker folder is found at – /home/richay/docker
The environment variable needed is – DOCKER_MODS=linuxserver/mods:universal-docker

Adding these in my new docker-compose will look like this

---
services:
  code-server:
    image: lscr.io/linuxserver/code-server:latest
    container_name: code-server
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Australia/Perth
      - DEFAULT_WORKSPACE=/config/workspace
      - PWA_APPNAME=code-server
      - DOCKER_MODS=linuxserver/mods:universal-docker
    volumes:
      - /home/richay/docker/code:/config
      - /home/richay/docker-compose:/config/workspace/docker-compose
      - /home/richay/docker:/config/workspace/docker
      - /var/run/docker.sock:/var/run/docker.sock
#    ports:
#      - 8443:8443
    restart: unless-stopped
    labels:
      - "traefik.enable=true"
      - "traefik.docker.network=proxy"
      - "traefik.http.routers.code-secure.entrypoints=https"
      - "traefik.http.routers.code-secure.rule=Host(`code-server.richay.au`)"
      - "traefik.http.routers.code-secure.tls=true"
      - "traefik.http.routers.code-secure.tls.certresolver=cloudflare"
      - "traefik.http.routers.code-secure.service=code"
      - "traefik.http.services.code.loadbalancer.server.port=8443"
      - "traefik.http.routers.code-secure.middlewares=authentik@file"
    networks:
      - proxy
networks:
  proxy:
    external: true


Note: Ports commented out as not needed with reverse proxy

If you dont have a reverse proxy and auth, then yours will look something like this

---
services:
  code-server:
    image: lscr.io/linuxserver/code-server:latest
    container_name: code-server
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Etc/UTC
      - PASSWORD=password #optional
      - HASHED_PASSWORD= #optional
      - SUDO_PASSWORD=password #optional
      - SUDO_PASSWORD_HASH= #optional
      - PROXY_DOMAIN=code-server.my.domain #optional
      - DEFAULT_WORKSPACE=/config/workspace #optional
      - PWA_APPNAME=code-server #optional
      - DOCKER_MODS=linuxserver/mods:universal-docker
    volumes:
      - /path/to/code-server/config:/config
      - /path/to/docker-compose:/config/workspace/docker-compose
      - /path/to/docker:/config/workspace/docker
      - /var/run/docker.sock:/var/run/docker.sock
    ports:
      - 8443:8443
    restart: unless-stopped


Head to either http://hostip:8443 if using standard or https://code-server.richay.au if using reverse proxy and enjoy direct access to your docker-compose files with the power of VS Code 🙂

Posted on

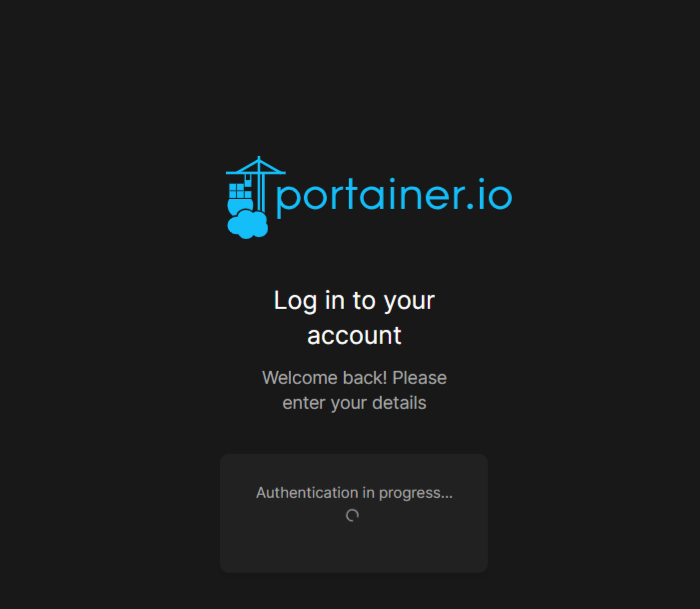

Portainer and Authentik / Traefik failling to login due to UFW

I use Authentik with Traefik. This is also assuming you followed the official Authentik intergration guide found here.

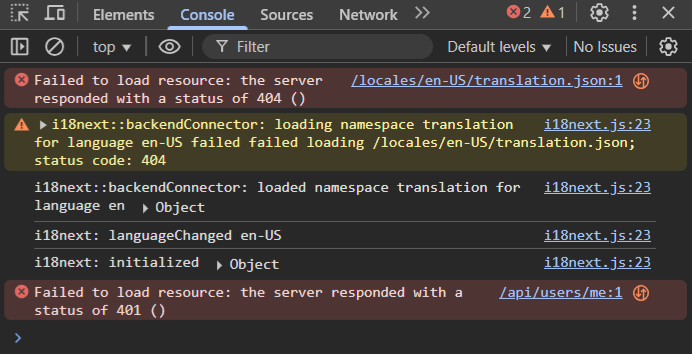

This is the screen that I had when logging into Authentik:


On the right there is a 404 error when inspecting the console, which leads to the 401 error – unauthorized. After lots of trial and error, turns out it was due to Uncomplicated Firewall (UFW) blocking the port access of 443 (https).

They are both on the same docker network, I also use labels for traefik. I tried using my config setup in traefik with no luck either. Disabling UFW to test the login process.

sudo ufw disable


This worked! So all that was left was to re-enable authentik and add in the two rules for port 80 (http) and port 443 (https) then reload UFW to enforce the changes

sudo ufw enable
sudo ufw allow 80/tcp comment 'Allow HTTP for Traefik'
sudo ufw allow 443/tcp comment 'Allow HTTPS for Traefik'
sudo ufw reload
Posted on

Jellyfin and Authentik OIDC with admin

Warning: The default setup WILL remove admin priveliges. Best to create a second admin account beforehand. A work around fix is found at the bottom of this article.

Follow the instructions to integrate authentik with Jellyfin here.

Step 9 for role claims needs some extra info if you want to log into Jellyfin with admin access, namely the Admin Roles.

I’ve gone with the default group for Authentik of “authentik Admins”.

You can use a custom group or create one in Authentik by going to:
Admin Interface -> Directory -> Groups -> Create

Name it “jellyfin” and leave all as default. Go to users at the top and add the correct users you want admin access to jellyfin.

Enter “jellyfin” in the Admin Roles in the Jellyfin OIDC plugin.

Enjoy 🙂

Fixing broken admin with the OIDC Admin Roles

Credit to Spyros from the comments

If you have set this up with the official instrcutions and need to still add the ‘Admin Roles’ for authentik, navigate to your data at /jellyfin/data/plugins/configurations/SSO-Auth.xml

Edit the lines at <AdminRoles> to the following

          <AdminRoles>
            <string>authentik Admins</string>
          </AdminRoles>


Or to whatever your custom group is named, then save and restart 🙂

Posted on

Authentik and Home Assistant with working Companion App solution using Traefik proxy

I absolutely love the fact I can log into authentik and then bypass all app login screens for instant access. This was a slight challenge with Home Assistant as placing this behind Authentik behind this would break the phone companion app. Here is a quick guide on how I overcame this.

This was solved by setting two pathways leading back to my home assistant in traefik, one being behind authentik for the SSO, and the other using the default home assistant login screen for the companion app.

This requires a few things first:
Traefik setup with dynamic config
HTTP Header Authentication integration for home assistant found here
Authentik setup with provider and application, instructions found here

The added lines I used in configuration.yaml in Home Assistant

http:
  use_x_forwarded_for: true
  trusted_proxies:
    - 10.10.10.0/24 # Change to your home network
    - 172.22.0.0/16 # Change to your traefik proxy network

auth_header:
  username_header: X-authentik-username


The config.yaml for my traefik
Please not there is two routers for the one service, one being behind Authentik (/auth) and the other bypassing Authentik. There is also a path prefix for the outpost so there is no 404 error.

http:
  routers:
    # Router for SSO - PROTECTED by Authentik
    home-assistant:
      entryPoints:
        - "https"
      rule: "Host(`home-assistant.richay.au`) && PathPrefix(`/auth`) && !PathPrefix(`/auth/token`) || PathPrefix(`/outpost.goauthentik.io`))" # Change host domain
      middlewares:
        - https-redirectscheme
        - authentik
      tls: {}
      service: home-assistant
    # Router for Companion App - UNPROTECTED by Authentik
    home-companion:
      entryPoints:
        - "https"
      rule: "Host(`home-companion.richay.au`) || Host(`home-assistant.richay.au`)" # Change host domain
      middlewares:
        - https-redirectscheme
      tls: {}
      service: home-assistant

  services:
    home-assistant:
      loadBalancer:
        servers:
          - url: "http://10.10.10.10:8123" # change this to your IP of your Home Assistant
        passHostHeader: true

  middlewares:
    authentik:
      forwardAuth:
        address: "http://authentik-server:9000/outpost.goauthentik.io/auth/traefik"
        trustForwardHeader: true
        authResponseHeaders:
          - X-authentik-username
          - X-authentik-groups
          - X-authentik-email
          - X-authentik-name
          - X-authentik-uid
          - X-authentik-jwt
          - X-authentik-meta-jwks
          - X-authentik-meta-outpost
          - X-authentik-meta-provider
          - X-authentik-meta-app
          - X-authentik-meta-version
          - authorization
    https-redirectscheme:
      redirectScheme:
        scheme: https
        permanent: true


When you select your server on the companion app, choose the
https://home-companion.richay.au option. This will allow the app to work.

When using a web browser, use https://home-assistant.richay.au for SSO access using Authentik.
